Tuxedo

Tuxedo

Aluminium prestaties


Performante aluminium fitnessfiets

Het aluminium frame van de Tuxedo Flatbar is lichter dan veel carbon frames op de markt.

Het technologisch vooruitstrevend frame wordt van 6061 aluminium gemaakt en de framebuizen met een variabele wanddikte krijgen een dubbele thermische behandeling.

Het resultaat: een licht, stijf en comfortabele aluminium fietsframe.

Kies uw model

Tuxedo Flatbar M1

Frame
Origine
Tuxedo Flatbar
Derailleurs
Shimano
Tiagra 10s
Crankstel
Shimano
Tiagra Compact 50/34
Cassette
Shimano
HG-50 11-34
Wielen
Fulcrum
Racing 500
Zadelpen
Uno
Onepiece 27,2 350mm
Stuur
Ritchey
Flat 580
Stuurpen
Controltech
CLS L2
Prijs : 1 350 €
Gewicht : 8 174 g

Tuxedo Flatbar M2

Frame
Origine
Tuxedo Flatbar
Derailleurs
Sram
Apex Eagle 1x12v
Crankstel
Sram
Apex 12v 42D
Cassette
Sram
GX Eagle 10-52 12s
Wielen
Fulcrum
Racing 500
Zadelpen
Uno
Onepiece 27,2 350mm
Stuur
Ritchey
Flat 580
Stuurpen
Controltech
CLS L2
Prijs : 1 717 €
Gewicht : 8 208 g

Tuxedo Flatbar M3

Frame
Origine
Tuxedo Flatbar
Derailleurs
Shimano
Ultegra Sport
Crankstel
Shimano
105 R7000 50/34 Compact
Cassette
Shimano
R7000 11-34
Wielen
Fulcrum
Racing 500
Zadelpen
Uno
Onepiece 27,2 350mm
Stuur
Ritchey
Flat 580
Stuurpen
Controltech
CLS L2
Prijs : 1 599 €
Gewicht : 7 869 g

Tuxedo Flatbar M3 +

Frame
Origine
Tuxedo Flatbar
Derailleurs
Shimano
Ultegra Sport
Crankstel
Shimano
105 R7000 50/34 Compact
Cassette
Shimano
R7000 11-34
Wielen
Prymahl
Orion A30 Pro
Zadelpen
Ritchey
1B WCS 27.2
Stuur
Ritchey
MTN 2x WCS 580
Stuurpen
Controltech
CLS L2
Prijs : 2 211 €
Gewicht : 7 490 g

Tuxedo Flatbar M4 AXS

Frame
Origine
Tuxedo Flatbar
Derailleurs
Sram
Apex XPLR AXS 1x12v
Crankstel
Sram
Apex 12v 42D
Cassette
Sram
Apex 12v AXS XPLR 11-44
Wielen
Fulcrum
Racing 500
Zadelpen
Uno
Onepiece 27,2 350mm
Stuur
Ritchey
Flat 580
Stuurpen
Controltech
CLS L2
Prijs : 2 065 €
Gewicht : 7 925 g

Tuxedo Flatbar M4 AXS +

Frame
Origine
Tuxedo Flatbar
Derailleurs
Sram
Apex XPLR AXS 1x12v
Crankstel
Sram
Apex 12v 42D
Cassette
Sram
Apex 12v AXS XPLR 11-44
Wielen
Prymahl
Orion C35 R
Zadelpen
Ritchey
1B WCS 27.2
Stuur
Ritchey
MTN 2x WCS 580
Stuurpen
Controltech
CLS L2
Prijs : 2 880 €
Gewicht : 7 424 g

Fotogalerij

Tuxedo
Tuxedo
Tuxedo
Tuxedo
Tuxedo

Technologische troeven

Tuxedo

Tuxedo

Lighter and more comfortable than the majority of carbon frames, our 3rd generation Tuxedo Evo3 flat-bar will charm you by its performance and steering.

What is the secret of this exceptional performance? A highly technical build using extruded 6061 alloy tubes that is both stiff and light in weight. The tube interiors are machined and triple butted then T4T6 heat treated for further strength. After welding, the complete frame is strengthened once more by another heat treatment.

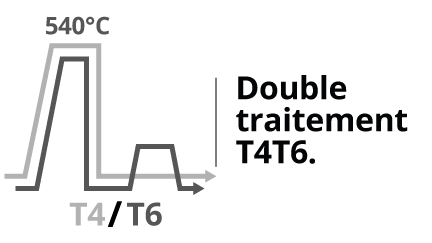

T4 & T6 heat treatments

T4 & T6 heat treatments

A highly technical build using extruded 6061 alloy tubes that is both stiff and light in weight. The tube interiors are machined and triple butted then T4T6 heat treated for further strength. After welding, the complete frame is strengthened once more by another heat treatment.
TORAY carbon fibre

TORAY carbon fibre

The frame and fork are moulded using High Modulus Toray® T800 unidirectional carbon fibre and M40 3K reinforced fibre.

The Japanese firm Toray® is the world's largest manufacturer of carbon fibre, its fibre is used in several fields such as car racing and the aeronautical industry. Toray fibre is used, for example, in the manufacture of the Boeing 787.
Hand-painted in our factory

Hand-painted in our factory

All Origine frames are painted in our assembly plant in the north of France.

We have conscientiously chosen to exclusively use car industry quality water soluble paints.

Their resistance to scratches, impacts and abrasion is far superior to those frames painted in Asia and the impact on the environment is considerably less.
Top quality finish

Top quality finish

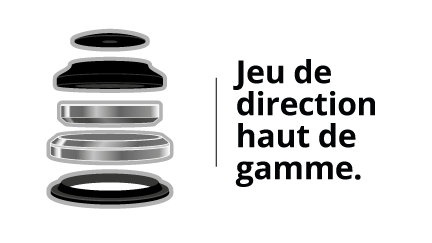

The Tuxedo frameset comes supplied with Origine's top-of-the-range tapered Inset 1"1/8-1.5" headset that has been specifically designed for cyclists seeking precision steering and performance.

Sealed high-quality smooth bearings for even more steering precision. Requires little turning effort, friction-free. Assembled in a controlled environment.

Top cap (of various sizes: 10, 15 or 25mm) machined from a single alloy block with an O-ring and gasket for a maximum protection and seal.

Plus, the seat post clamp is machined from a single alloy block, then anodised for extra strength.

Compatible with a standard 27.2mm seat post and Shimano Di2 shifting.

The bottom bracket is a standard BB86 (86.5 x 41mm)

Crankset compatibility

-Shimano: Across their entire range of 24mm models (as from Tiagra), except with triple chainrings
-Rotor: Across their entire range of 24mm and 30mm models
-Campagnolo: Across their entire UltraTorque and PowerTorque ranges
-Sram: GXP only (22/24mm)
-FSA: MegaExo 24mm only

It's the small detail that makes all the difference.
Géométrie

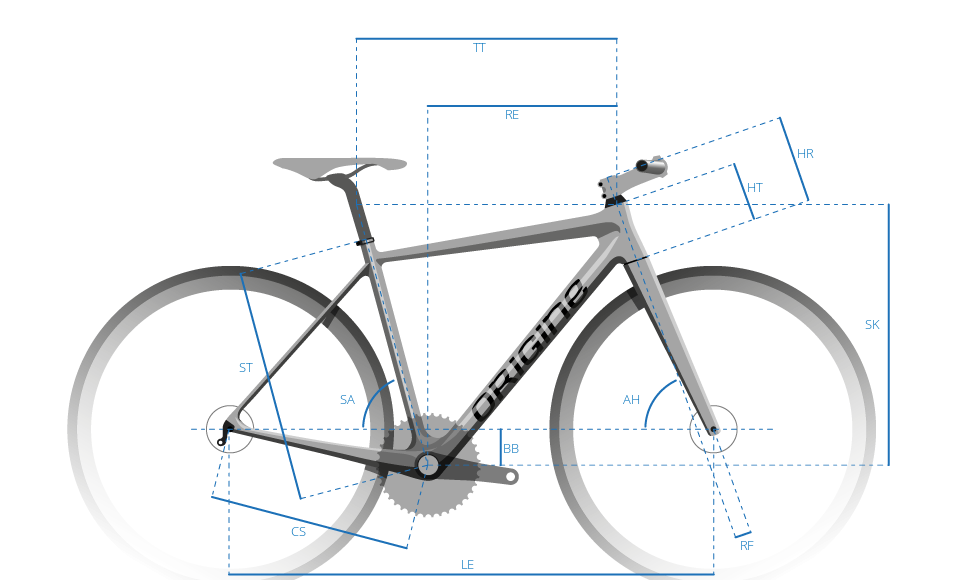

Geometrie van het frame

XS S M L XL XXL
ST Zitbuishoogte 490 530 555 590 610
TT Bovenbuislengte 530 545 565 585 595
HT Balhoofdhoogte 140 160 185 210 210
HR Standaard cockpithoogte 220 240 265 290 290
HR Maximale cockpithoogte Van 190 tot 240 Van 210 tot 260 Van 235 tot 285 Van 260 tot 300 Van 260 tot 300
SA Zitbuishoek 73.5 73.5 73 73 72.5
AH Balhoofdhoek 72 72 72.5 72.5 73
CS Lengte achtervork 410 410 410 410 408
SK Stack 543 562 588 611 615
RE Reach 369 379 385 398 403
BB BB drop 70 70 70 70 70
LE Wielbasis 974 990 1000 1020 1025
RF Vork offset 45 45 45 45 45
Stuurpen CLS L2
Lengte fietser Van 151 tot 155 Van 156 tot 160 Van 160 tot 169 Van 170 tot 173 Van 174 tot 176 Van 177 tot 179 Van 180 tot 183 Van 184 tot 185 Van 186 tot 188 Van 189 tot 190 Van 191 tot 196 Van 197 tot 202
Stuurpenlengte 60 80 80 100 100 110 110 120 120 130 120 130
Stuurbreedte 580 580 400 400 420 420 420 420 440 440 580 580
Lengte van de cranks 170 170 170 170 172.5 172.5 172.5 172.5 175 175 175 175
